 BIPAP machine can be set IPAP (inspiratory positive airway pressure) and EPAP (Expiratory positive airway pressure). In use, for the user apnea varying degrees, airway pressure set by corresponding professionals for treatment.

It is suitable for clinical and home treatment of sleep apnea-hypopnea syndrome (OSAHS) and respiratory failure diseases.

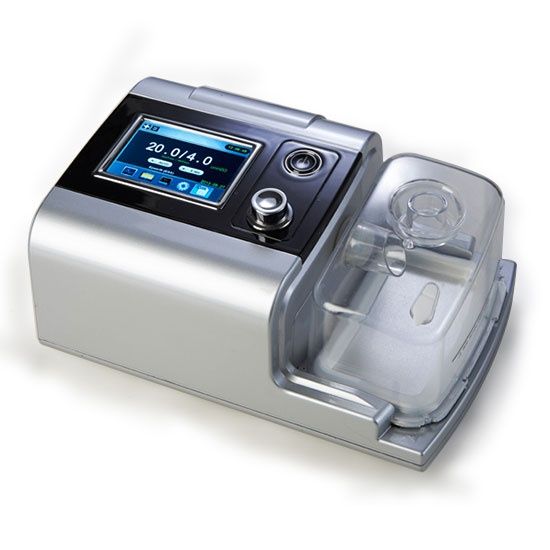

BC-19


Features of BIPAP Machine

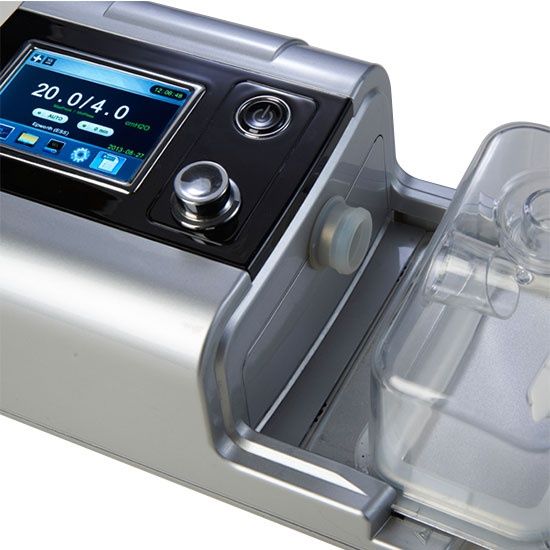

1. 3.5”TFT LCD display with easy operation.
2. Interactive operation interface is available. Back-lighting function allow night operation.
3. Fashionable design with fine piano lacquer, convenient for wipe.
4. Respiratory waveform & quality waveform display can achieve real time monitoring of CPAP
5. Ultra silent design & Delay time step up design.
6. The portable machine adopts imported movement technology, capable of constant heating.
7. Bipap machine is working to achieve human-computer synchronization.

Note of BIPAP Machine

1. Not available in bullous lung disease, pneumothorax, severe lack of effective circulating blood volume with shock, coma or with disturbance of consciousness, or don’t cooperate or accept the mask treatment.
2. Not apply to children, or physical, sensory, intellectual can not be used safely and without the aid or user under guardianship.

Parameters of BIPAP Machine

Model

BC19

Display

3.5’’TFT LCD

Mode

CPAP, S, T, S/T

Functions and features



Pressure

4-25CMH2O

Belex (1-3 level)

2-4cmH2O

Ramp

0-60min

IPAP

4-25cmH2O

EPAP

4-25cmH2O

Respiration Rate

4~40BPM

Inspiration Time

0.5~3.0s

Inspiration Sensitivity

1~6 level

Expiration Sensitivity

1~6 level

Automatic Leakage Compensation

Yes

Automatic Altitude Adjustable

Yes

Automatic ON/OFF

Yes

Adjustable Constant Temperature Humidification System

Yes

Replaceable Water Chamber

Yes

USB Download to PC

Yes

Sound Pressure Level(10cmH2O)

<30dBA

Input Volt.&Freq.

110-240Vac,50/60Hz

Net Weight & Size

1.8kg,255×170×112mm (Host+Humidifier)



BIPAP
Apply Crowd:
1. Moderate OSAHS patients
2. Chronic obstructive pneumonia
3. Respiratory failure

Taboo:
1. Repeated epistaxis
2. Coma
3. Hemodynamic instability
4. Pneumothorax
5. Pulmonary bulla
6. Cerebrospinal rhinorrhea

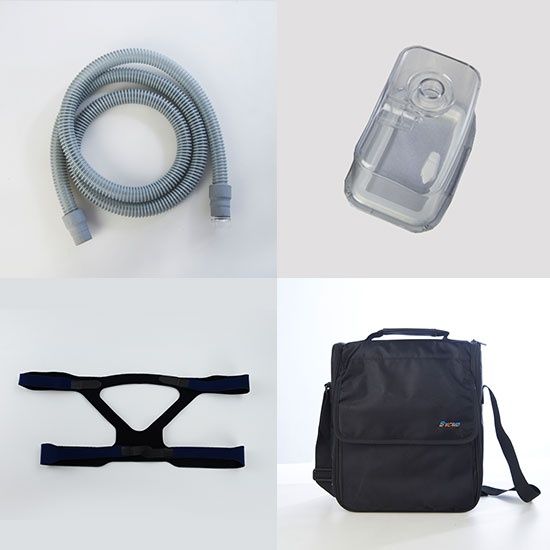

Product Accessories

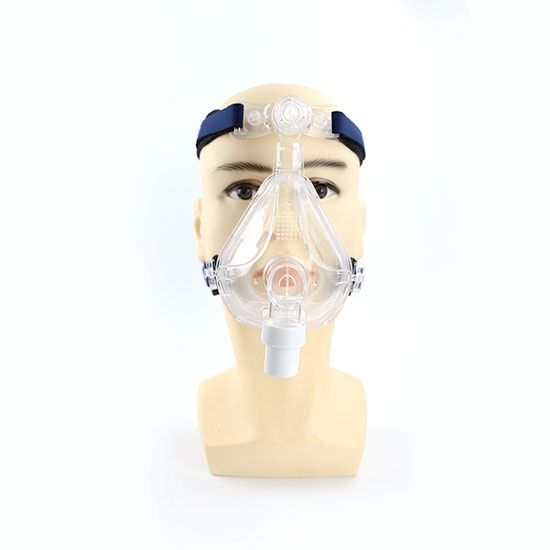

Full Face Mask, Headgear, Tube, Filter, Power Adapter, User Manual & Traveling Bag
